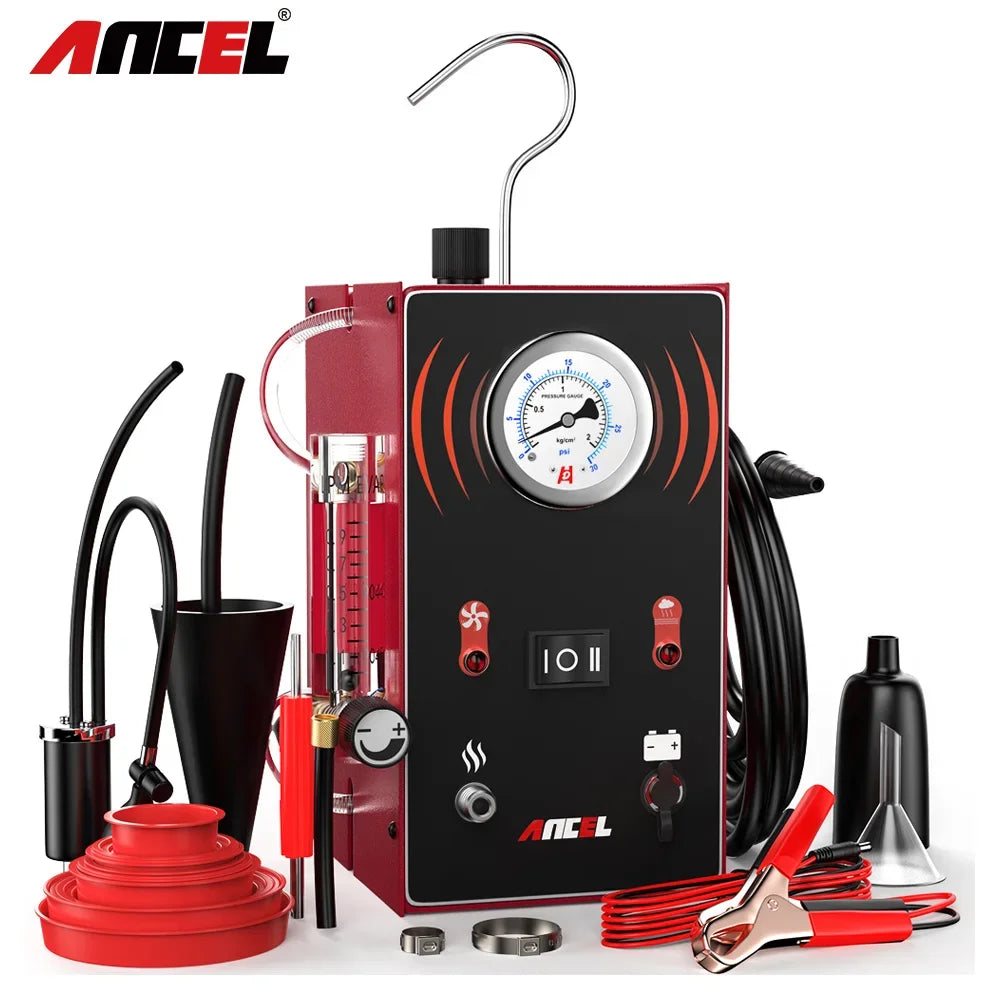

ANCEL S300 Car Smoke Leak Detector Turbo 12V with Pump EVAP Pipe Leak Locator Smoke Generator Diagnostic Tool for Car Motorcycle
ANCEL S300 Car Smoke Leak Detector Turbo 12V with Pump EVAP Pipe Leak Locator Smoke Generator Diagnostic Tool for Car Motorcycle
Impossibile caricare la disponibilità di ritiro
SPECIFICATIONS
Brand Name: ANCEL
Origin: Mainland China
Product: Pipe Leak Locator Smoke Generator tool
Feature: Built-in air pump
New accessories: Additional cap plugs kit
Power: Full 12V
Liquid: pink baby oil (not includes)
Pressure output: 0.8-14.5psi
Keyword: smoke generator car
Keyword 1: EVAP Smoke Leak Detector
Keyword 2: maquina de humo automotriz
Keyword 3: Crankcase System Test/Intake System Test
Keyword 4: Overheat & Anti-frost protection
Keyword 5: maquina de fumaca
Keyword 6: zadymiarka do dymu
Keyword 7: detector de fugas de humo de coche
Keyword 8: outils d'inspection
NEWS: BRAZIL warehouse available now! Not customs fee ship from Brazil warehouse.
Now we have S300 at many oversea warehouse, Australia, US, Czech, Germany, Spain, Russia, Brazil, Mexico, Saudi Arabia warehouse. Ship from Oversea warehouse will faster and no customs problem.

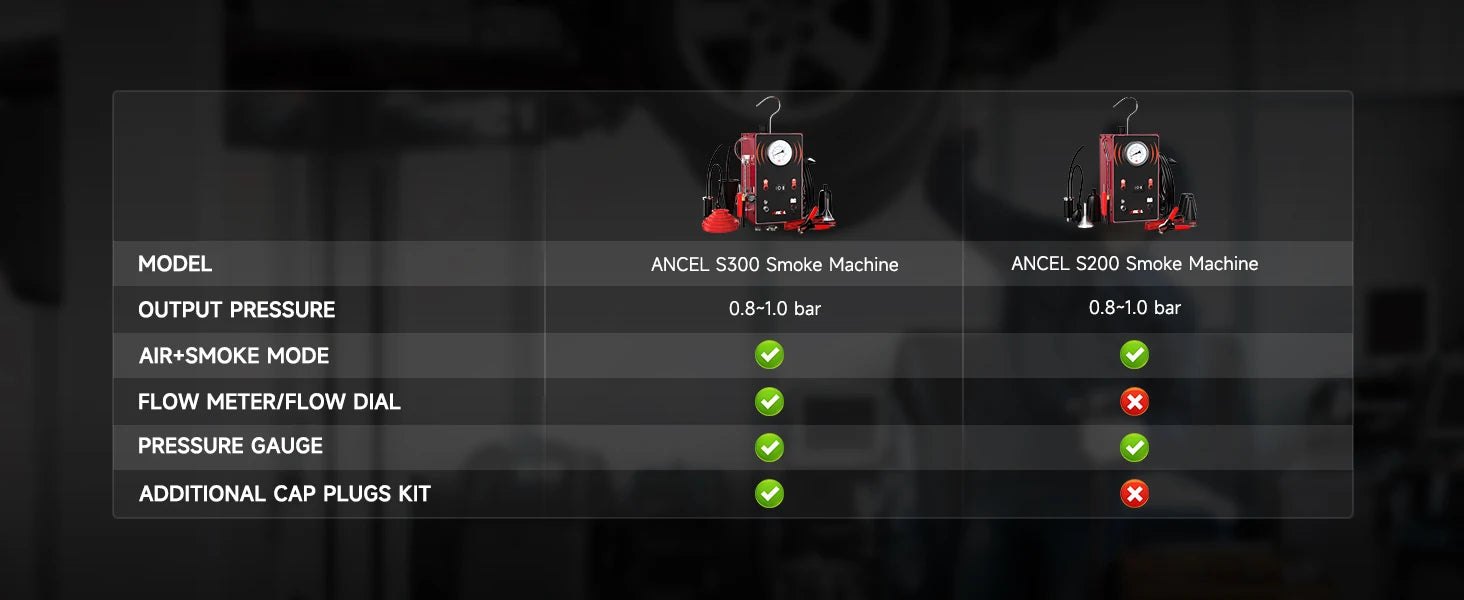

The difference of S200 and S300:

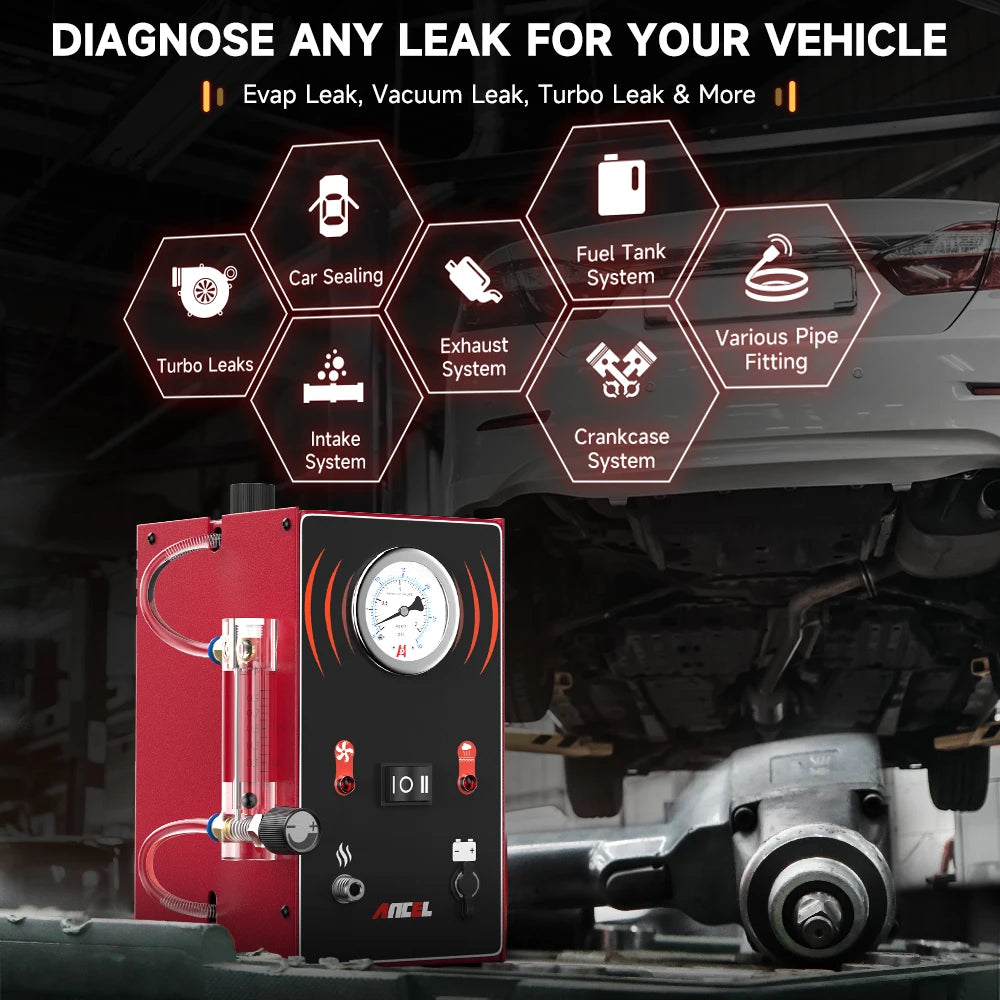

Ancel S300 supports multi-system testing, especially EVAP system
EVAP System Test
Intake System Test
Exhaust Systems Test
Crankcase system test
Car Sealing Test
Fuel Tank System Test
Turbo System Test
Various Pipe Fittings Test

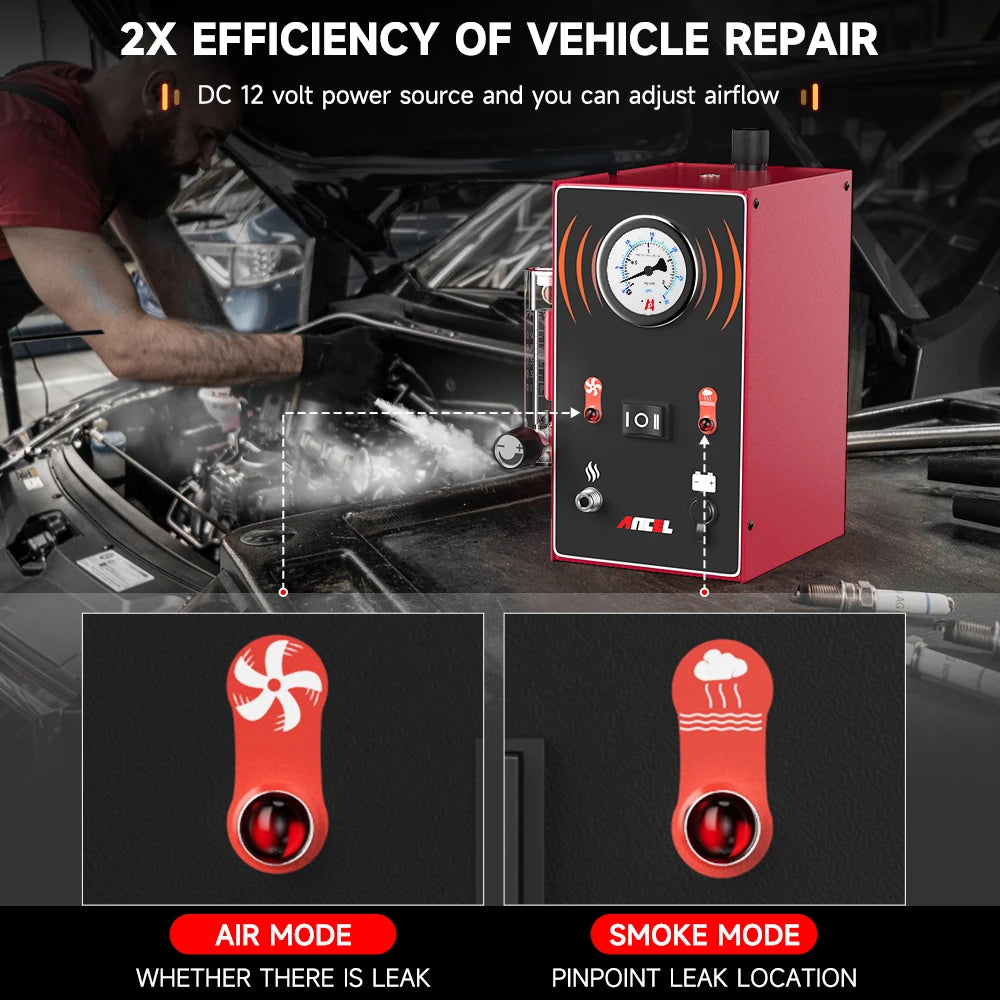

2 kinds of modes: AIR model+Smoke mode
Air mode :First, use the air mode to directly measure the leak, and judge whether there is a leak by the pressure gauge value. If it is less than 0.5bar, it will inevitably leak. If it reaches 0.8bar and above, the pipeline tightness is very good.Then there is no need to waste baby oil
SMOKE MODE:After the air mode determines that there is a leak, use the smoke mode to find the leak.

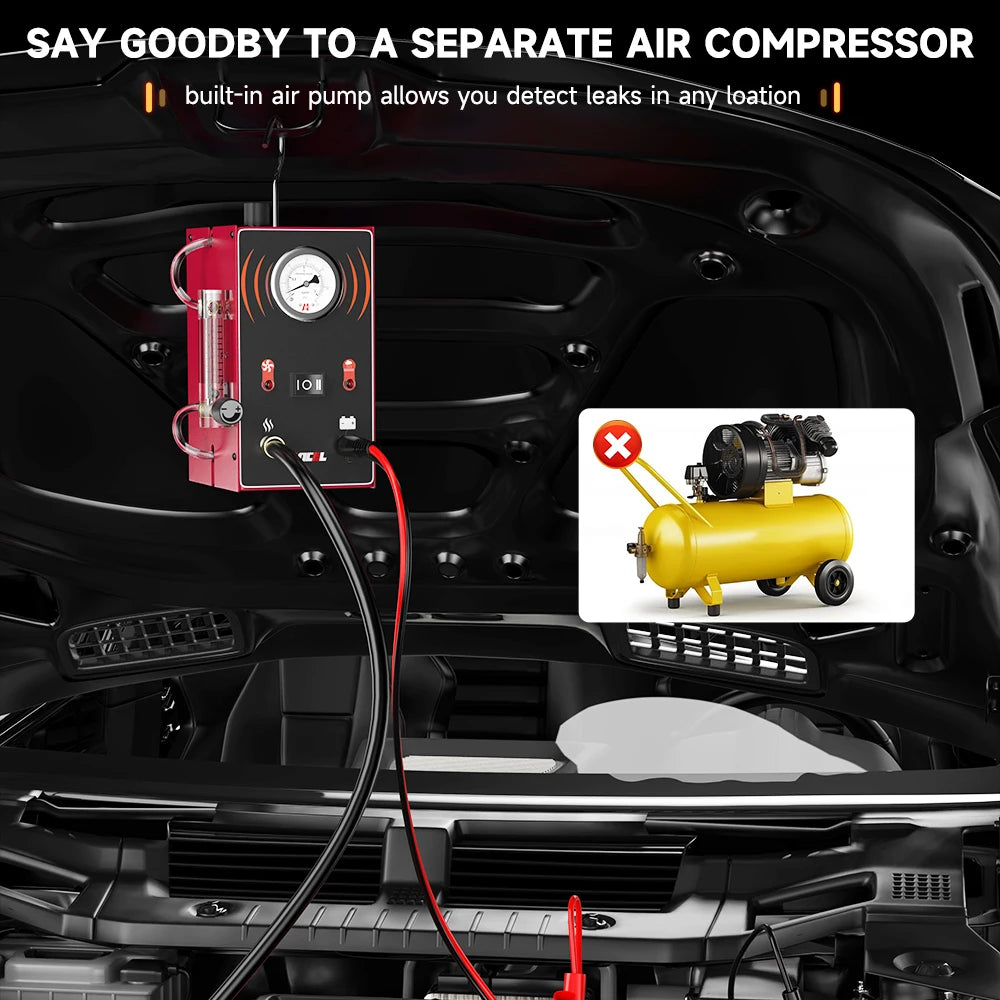

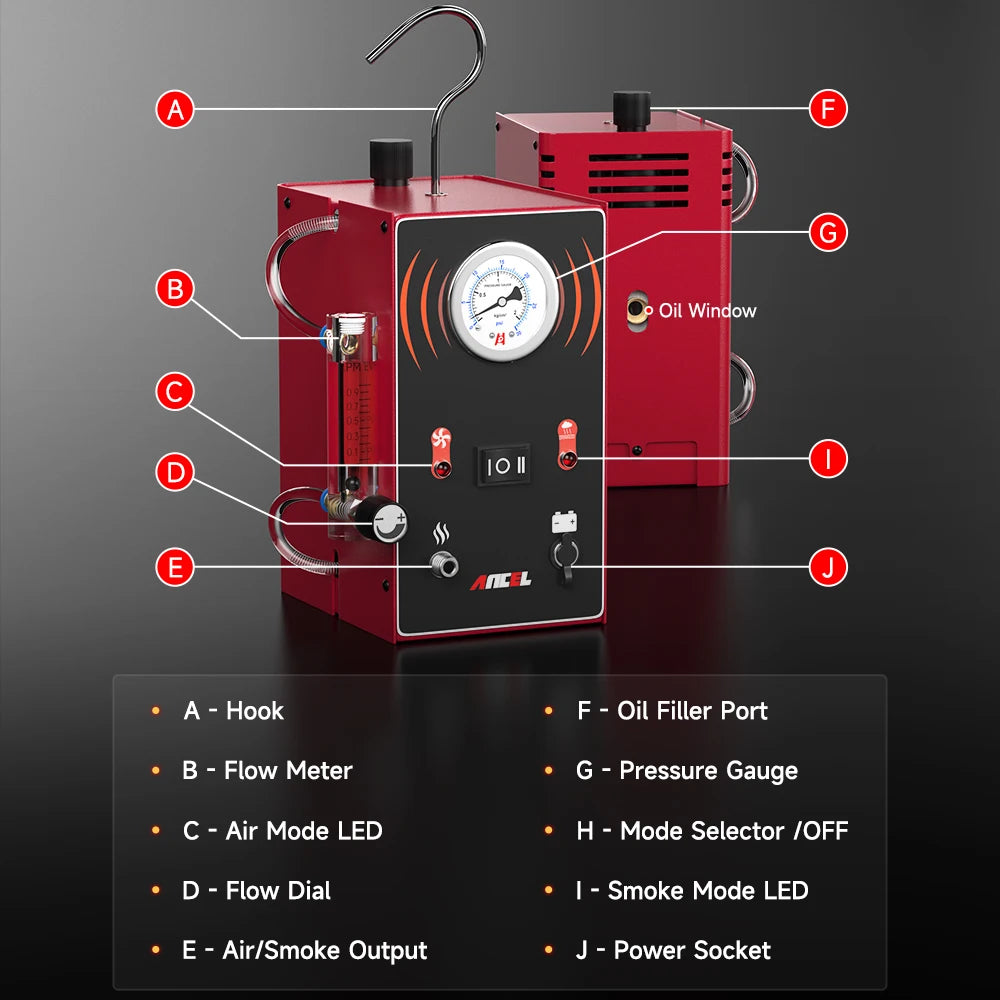

Built-in with air pump

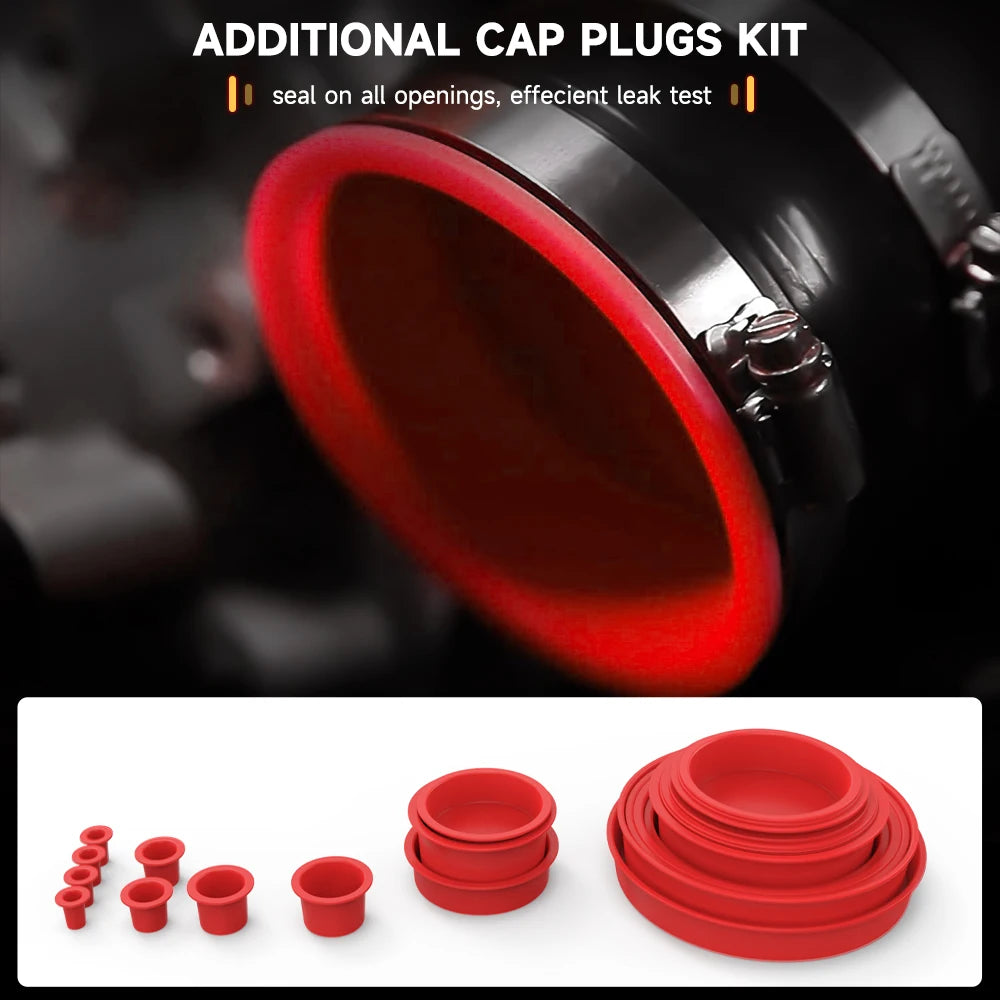

ADDITIONAL CAP PLUGS KIT
Wide Range of Applications
Free to choose Air/Smoke method to find leaks

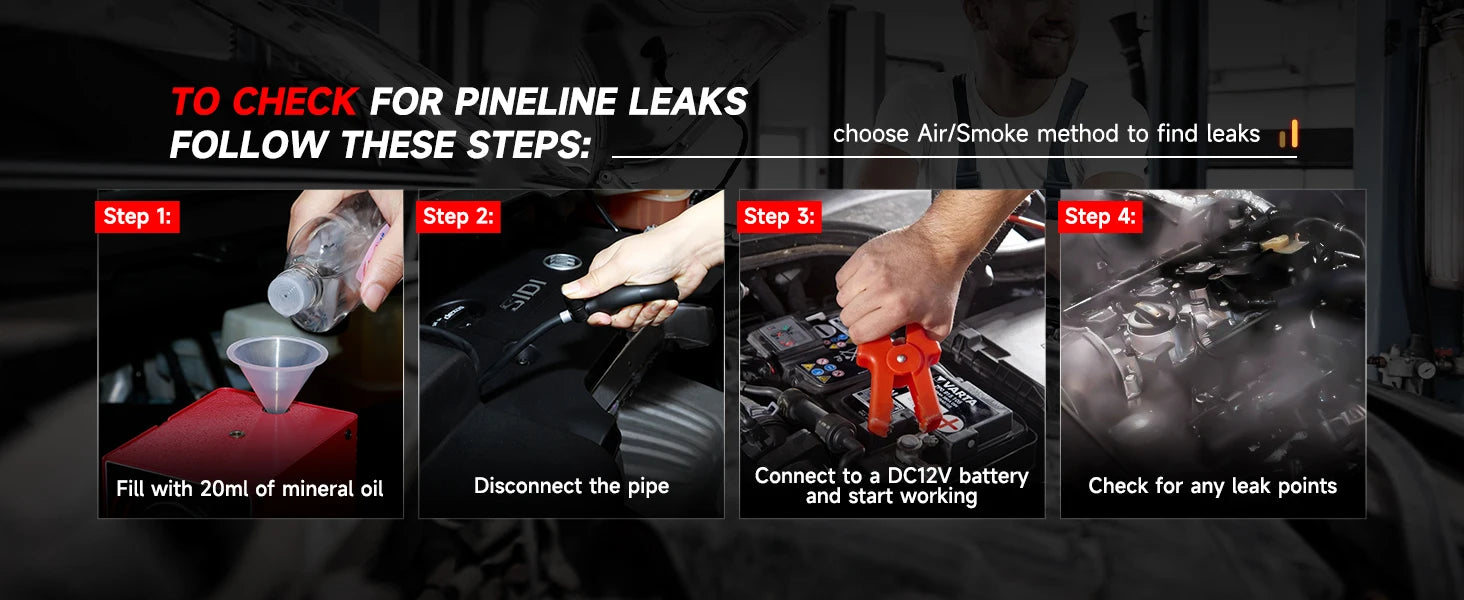

how to use Ancel s300?
Step1: Fill in 20ml test oil (baby oil) to the detector
Step2: Disconnect the pipe that needs to be connect with the detector
Step3: Connect detector with DC12V battery,device starts to work
Step4: The pipe will be filled with smoke,check the leak points

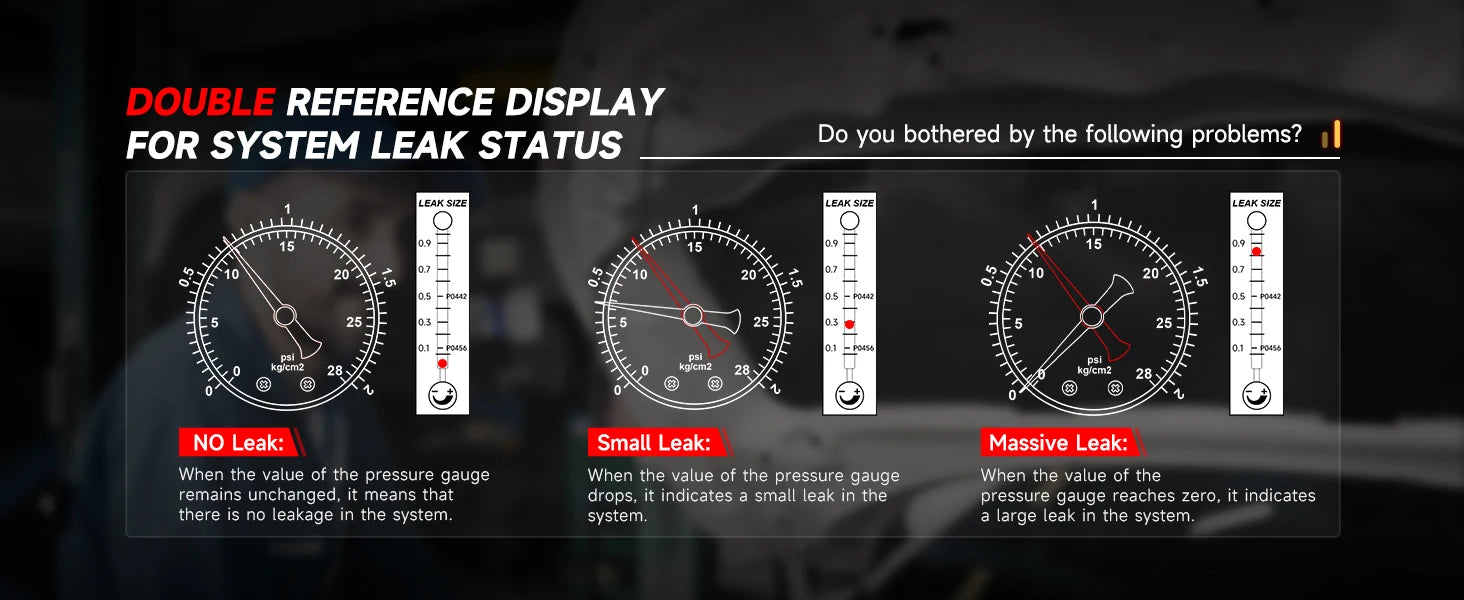

How to judge leakage- through the pressure gauge?
NO Leak: When the value of the pressure gauge remains unchanged and the flow meter will read zero (ball at bottom of scale), it means that there is no leakage in the system.
Small Leak: When the value of the pressure gauge drops and the ball in the flow meter slowly fall to the bottom of the scale, it indicates a small leak in the system.
Massive Leak: When the value of the pressure gauge reaches zero and the flow meter ball never falls to the bottom of the scale, it indicates a large leak in the system.

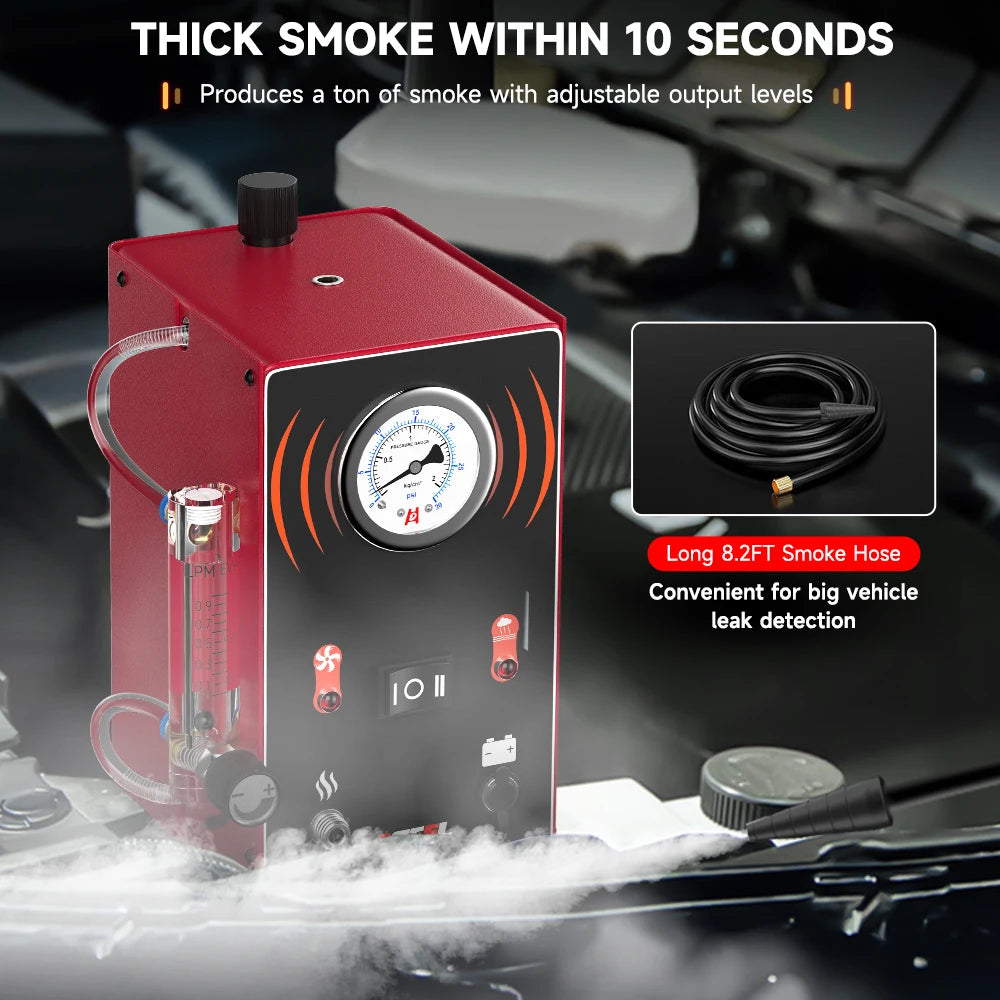

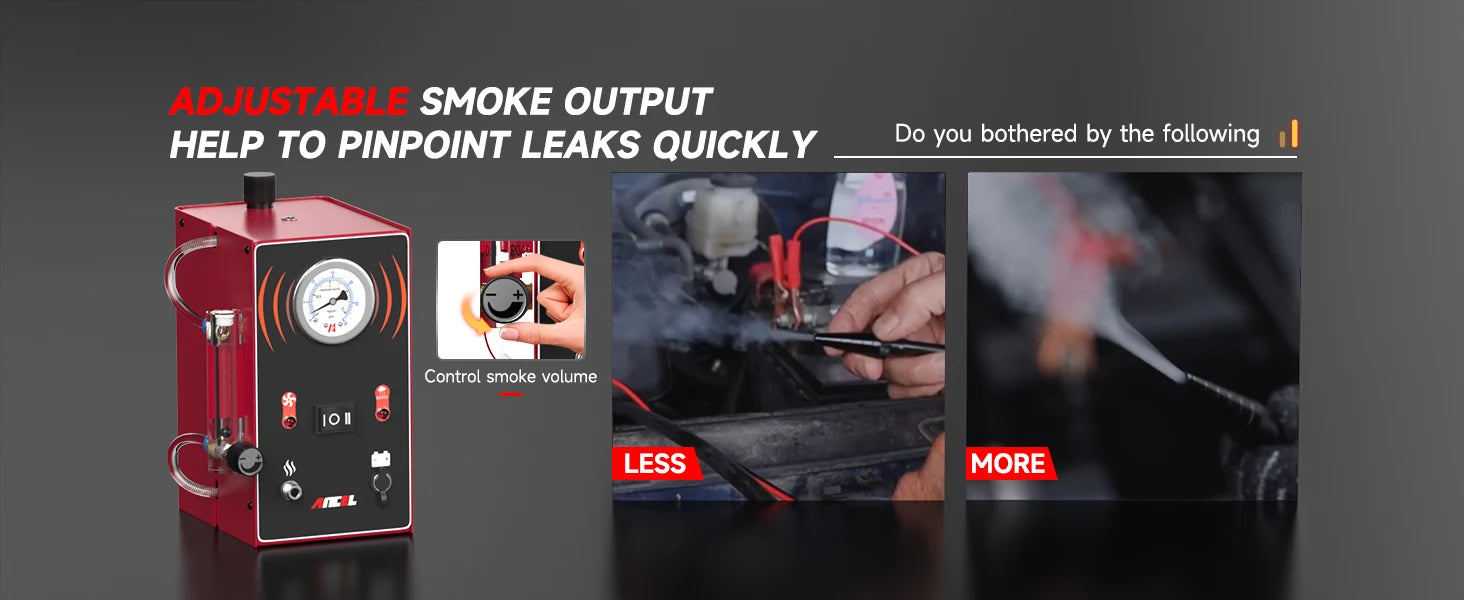

Adjustable Smoke Output Help To Pinpoint Leaks Quick
Adopt The Latest 5th Generation Technology

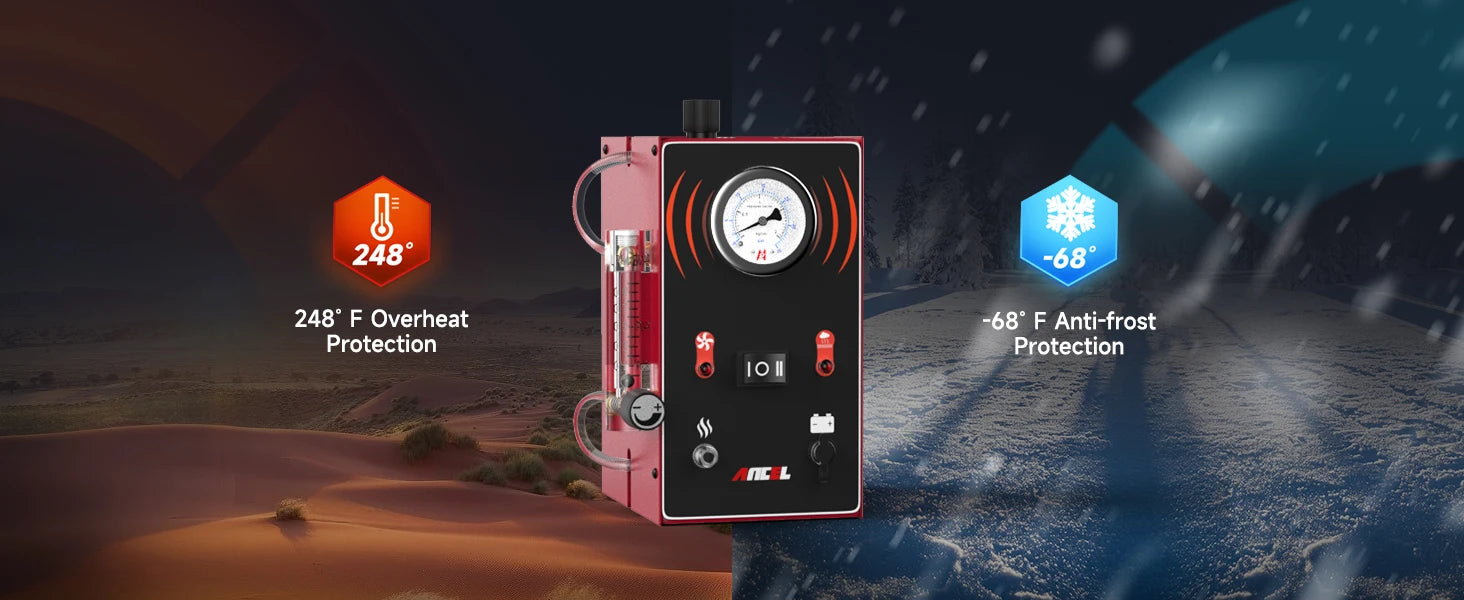

Overheat & Anti-frost Protection
Overheat Protection
When the temperature of the device exceeds 75℃, power protection will be intelligently activated to turn it off.
Anti-frost Protection
The device can also work normally at -20℃.
Specification
Power source:12V Fully Charged vehicle battery
Current:6A
Flow rate: <6 L/min
Pressure output:0.8-1.0 bar (0.8-14.5psi)
